FIRELINE

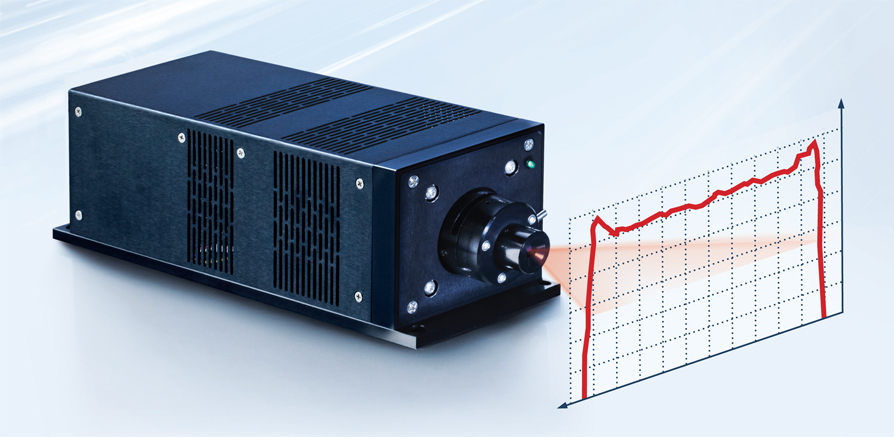

FIRELINE LASER

TEC High Power Direct Semiconductor pattern generator provides high reliability with superior beam shaping for high signal to noise industrial applications.

FEATURES

  • High Power, up to 15 Watt
  • Superior beam shaping
  • Externally focusable
  • High pointing and focus stability
  • Integrated monitoring and modulation features

APPLICATIONS

  • 3D Machine Vision
  • Outdoor Industrial Inspection
  • Rail and Road Inspection

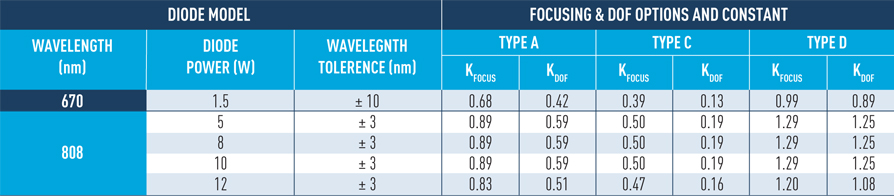

LASER DIODE MODELS AND FOCUSING OPTIONS

At Osela we provide many different focusing options giving you the flexibility to choose the one that best suits your application. The Fireline laser is free focusable externally without removing any optics. From the graphs below, note the beam size and Depth of Focus (DOF) values and then multiply by the K constants for the laser diode model and focus option of choice (A, C, or D).

Example: From the graphs at 400 mm working distance, Focus = 140μm, DOF = 36 mm. Then for Laser Model 808nm 10W the line thickness at focus for OPTION A  will be 124.6um (i.e. 140 um x 0.89). Its depth of focus will be 21.24mm (i.e. 36mm x 0.59).

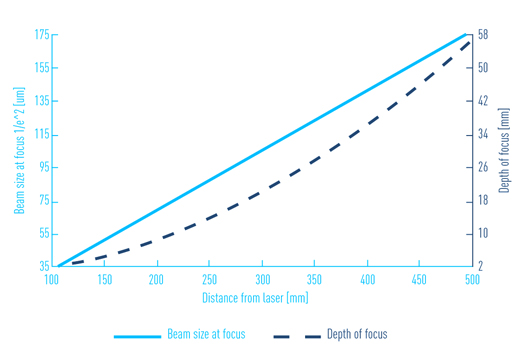

SHORT RANGE

LONG RANGE

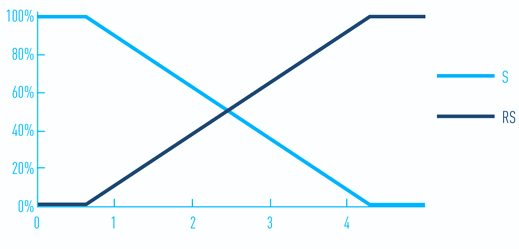

MODULATION

The Fireline can be modulated by an external 0 to 5V signal on PIN#2 of DB15 Connector. The S type modulation comes by default.

Note: One modulation input needs to be selected, S (default), RS, T or RT

FIRELINE SINGLE LINE GENERATOR

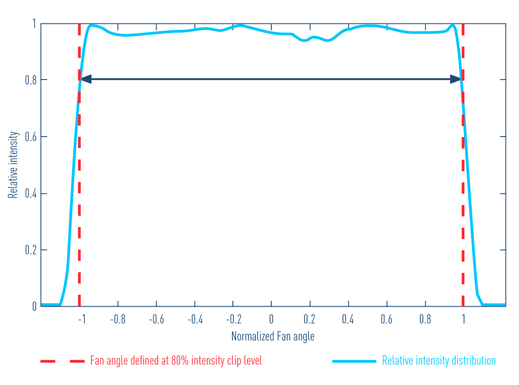

FIG 1 – INTENSITY DISTRIBUTION ALONG THE LINE

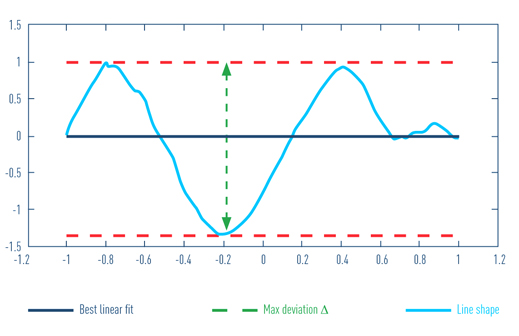

FIG 2 – LINE STRAIGHTNESS

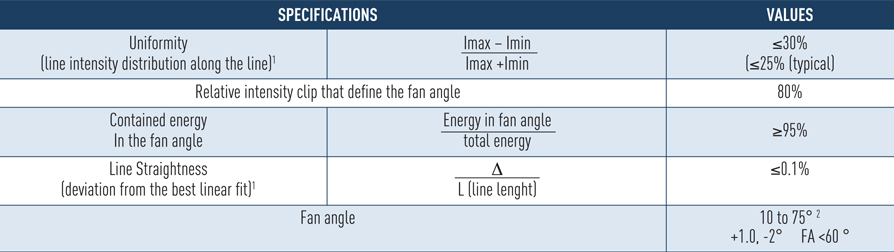

SPECIFICATIONS

1 Uniformity and straightness are measured at 80% of the fan angle.
2 Available Fan Angle (°) 10, 15, 20, 30, 38, 45, 60, 75, custom upon demand.

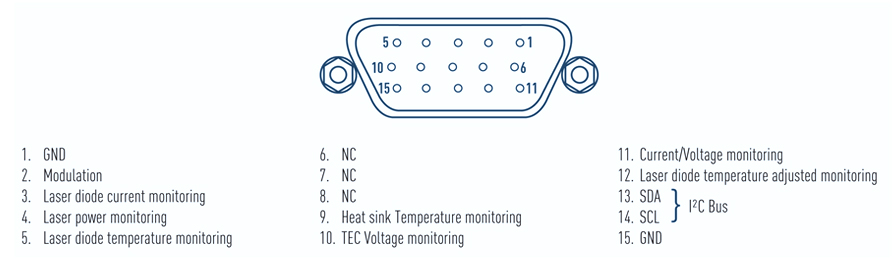

DB – CONNECTOR

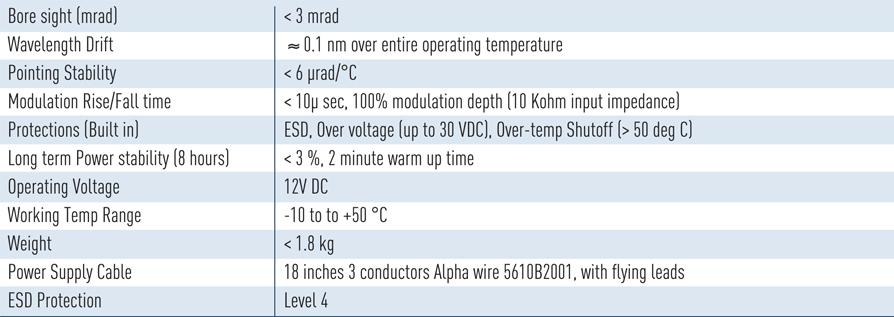

SPECIFICATIONS

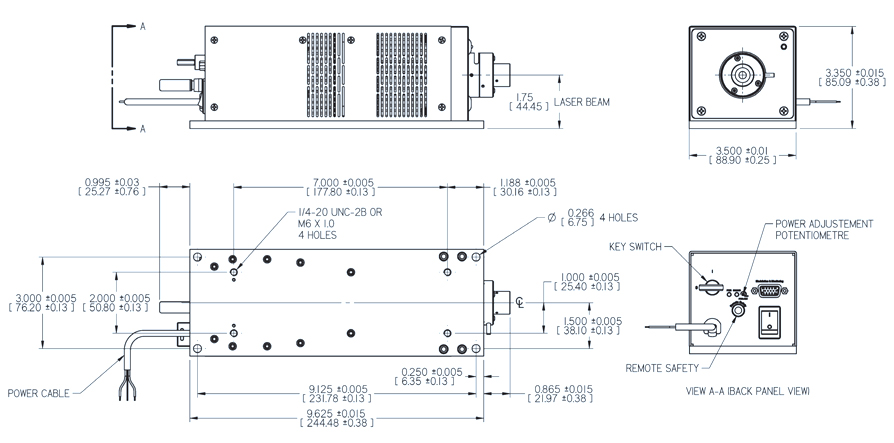

MECHANICAL SPECIFICATIONS

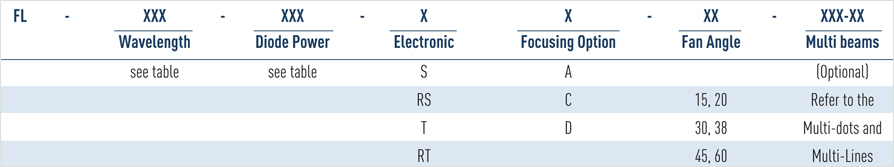

ORDERING CODE
